ABSTRACT

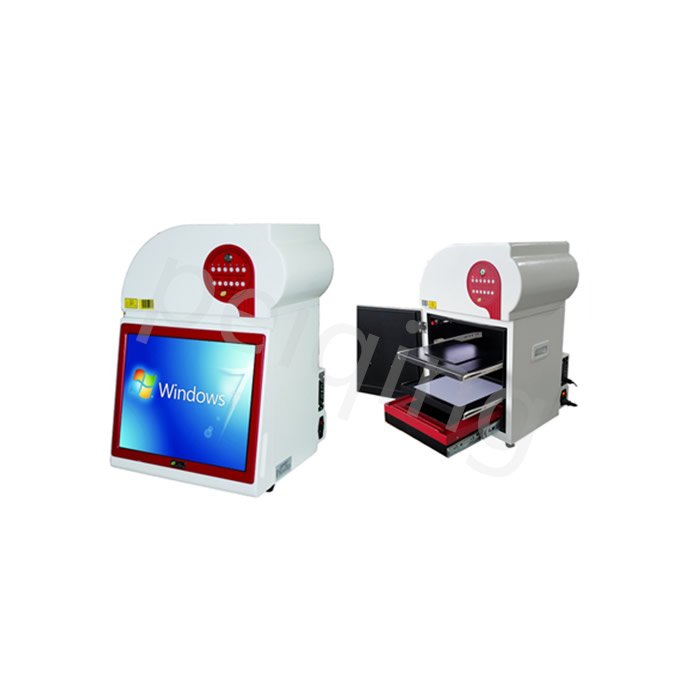

          Peiqing JS-M6EV   Fluorescent&Chemiluminescence Gel Imaging System is all-in-one machine and it supports plug and play function. It applies to chemiluminescence, multi-color fluorescence detection and gel detection. Peiqing JS-M6EV can capture razor-thin fluorescent light and fluorescent light by means of high resolution and low light-level CCD which combines large aperture and motorized zoom lenses. Deep cooling CCD can remove background noise to the most degree. Large aperture and motorized zoom can capture weak light furthest. Optional various fluorescent light sources and electric filter wheel satisfy experimental demand for nucleic acid imaging and ECL imaging.

PERFORMANCE FEATURES

►It can capture and analyze image by means of built-in 17 inches LED infrared multi-touch. No more needed of external PC.
►It can acquire the chemiluminescence experimental result rapidly by means of motorized zoom lens (F/0.95) and high sensitivity cooling CCD. It helps experimenter to avoid traditional way of darkroom exposure.
►Integration design for chemiluminescence, multi-color fluorescence detection and gel detection. Improve the experimental efficiency.
►Full-automatic computer control for AF, transillumination and reflected light.
►Observe gel and chemiluminescence image in real time.
►Support auto-exposure, one-touch capture image of western blot.
►Support one-touch auto-overlap marker image and chemiluminescence image, and generate three kinds of chemiluminescence images.
►Optional high brightness red, green and blue reflex excitation LED light source, in order to capture image for Cy2, Cy3 and Cy5.
►Support to set the number of sample, start and end of exposure time, also support to multi-capture in order to access to the best performance.

►Blotting membrane: Chemiluminescent, ECL, ECL plus, CDP Star, SuperSignal, CSPD, LumiGlo, Cy2, Cy3, Cy5, FITC, Alexa Dyes, DyLight Dyes, ProQ Diamond, ProQ Emerald 300, ProQ Emerald 488, IR Dye 680, etc.
►All kinds of fluorescent dyes for Nucleic acid detection: Ethidium bromide, SYBR Gold, SYBR Green, GelSafe, GelRed, GelGreen, SYBR Safe, GelStar , Fluorescein, Texas Red, Fluorescein, Oligreen, Picogreen, GelStar, etc.
►Protein detection: Coomassie Blue、Copper stain、Zinc stain、Flamingo、Oriole、Silver stain、Coomassie Fluor Orange、SYPRO Ruby、Krypto Mark glue/ membrane/chip, etc.
►Other application scenarios: kinds of hybond membrane, protein transfer film, colony count, ELISA PLATE, dot bloting, protein chips, TLC plate.

SPECIFICATIONS

►CPU:intel3205U, quad-core
►Memory: 2GB (The maximum capacity to support 4 GB)
►HardDisk: SSD 128 GB
►Wifi: YES
►Network adapter: 100Mbps Ethernet card
►Screen: 17 inches LED infrared multi-touch screen, response time is 8 MS, Induction strength is 15G, number of clicks > 600 million
►Cooling CCD: high resolution, low illumination level, made in USA (chip: Sony ICX695)
►Cooling function: semiconductor refrigeration
►Quantum efficiency : High QE: 80%
►Cooling temperature: below 80℃ (absolute temperature -60℃, and CCD temperature shows in panel in real time)
►Pixel: 2750 x 2200(6.05 M)
►Bin: 1x1, 2x2, 3x3, 4x4,6x6,8x8
►Lens: F/0.80, 4/3 inches motorized zoom lens, support AF.
►A/D Conver: 16 bit(0-65535)
►Pixel size: 4.54 x 4.54 um
►Dynamic range: > 4.6
►Zoom: drawer-style AF platform with two layers, compatible with various thicknesses samples
►Capture: Support one-touch auto-overlap marker image and chemiluminescence image, and generate three kinds of chemiluminescence images.
►One click shooting: Support auto-exposure, one-touch capture image of western blot.
►lifting platform(Optional): computer stepless control lifting platform, automatically locate sample
►UV light: transmission of ultraviolet, reflection ultraviolet (transmission blu-ray and red, green and blue reflection excitation light source is optional,cy2,cy3,cy5)
►Secondary light source: transmission: LED white light panel; reflection on both sides: white light source(luminescence), and computer can adjust the brightness
►Filter: standard configuration 590nm(EB/Gel Red/Biosafe/Gelsafe), optional configuration 535nm, 605nm and 699nm WLD
►Filter position: computer automatically control the position for 6 filters
►Timing shutdown: 0-60 minutes
►Shooting area: UV: 20x20cm  white light: 20x20cm
►Enterprise certification: “Shanghai high and new tech enterprises”, third prize in “Shanghai science and technology awards”
►Dimension: 39 x 35 x 59 CM

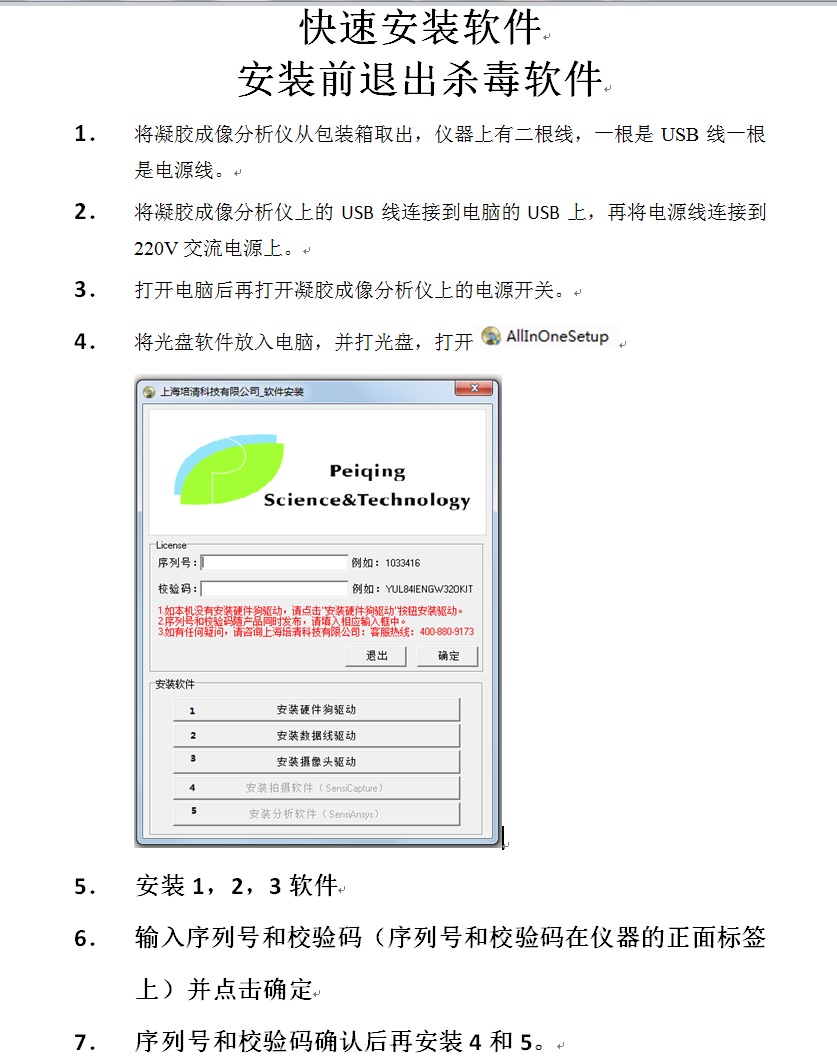

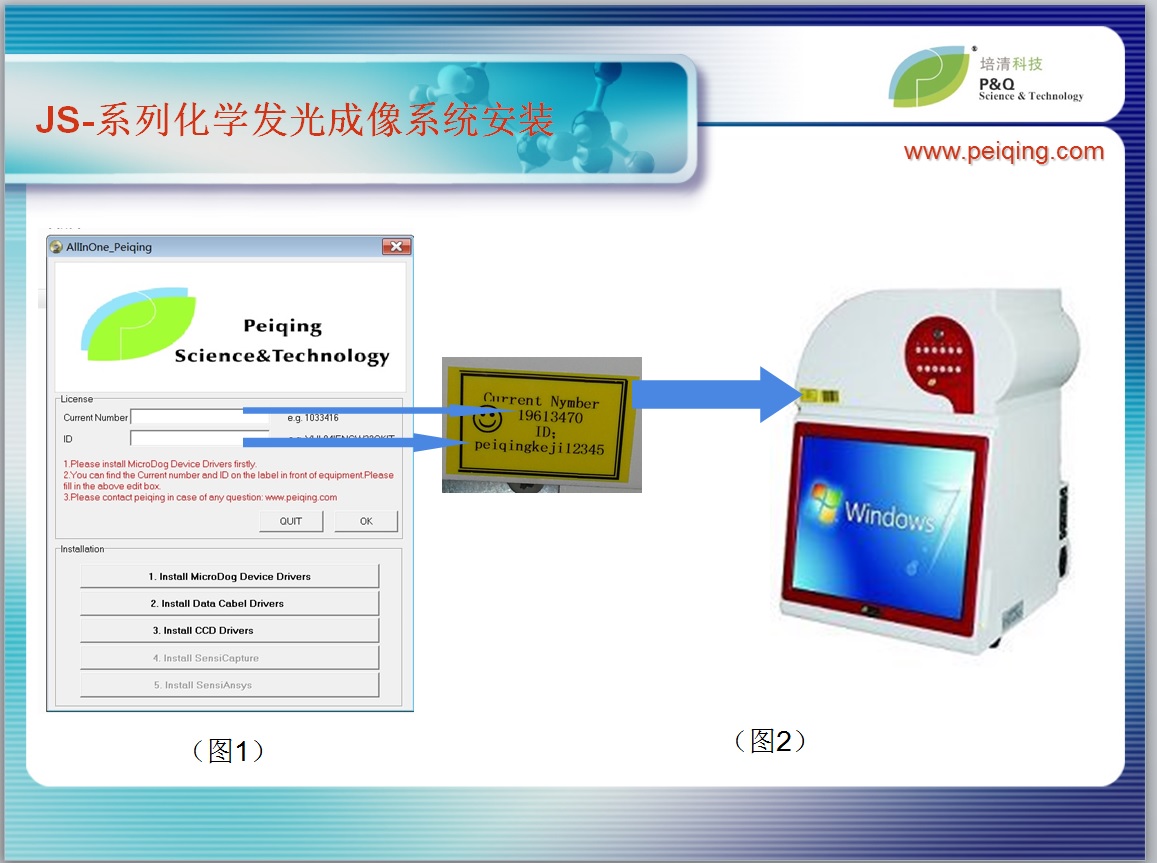

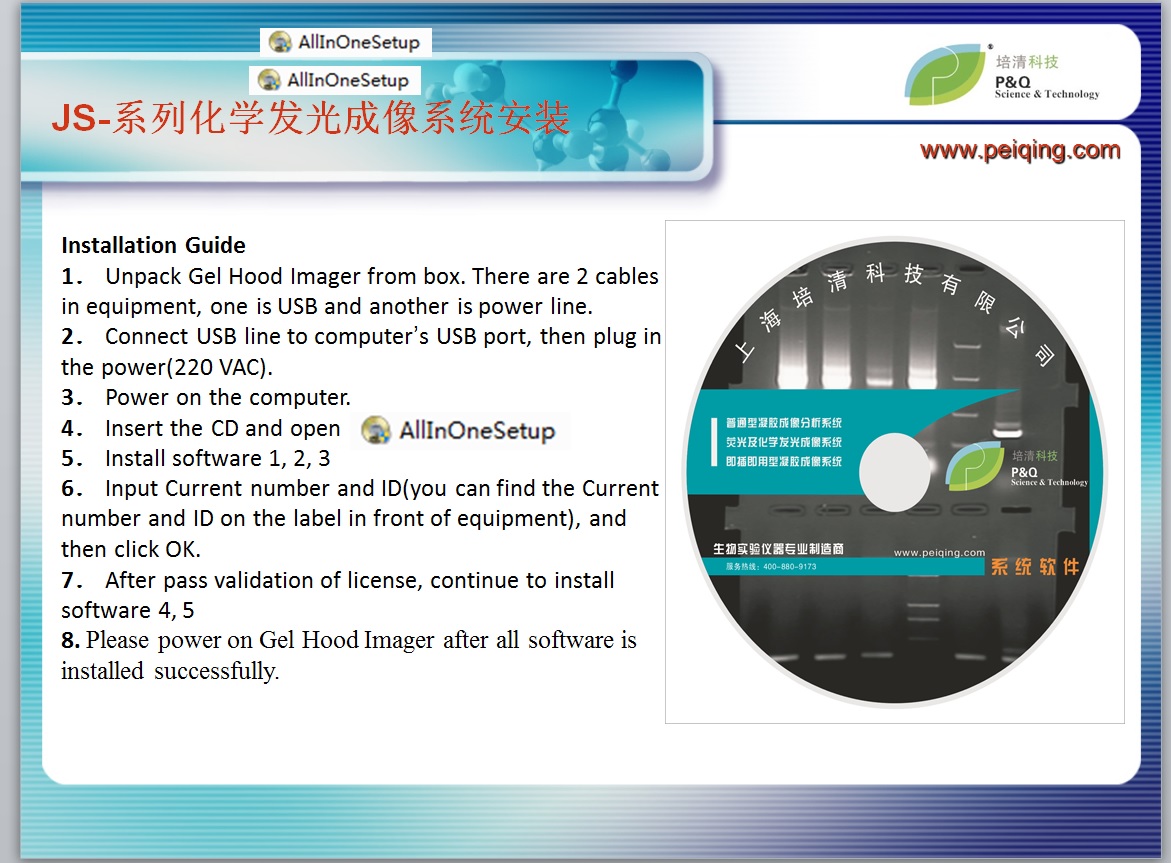

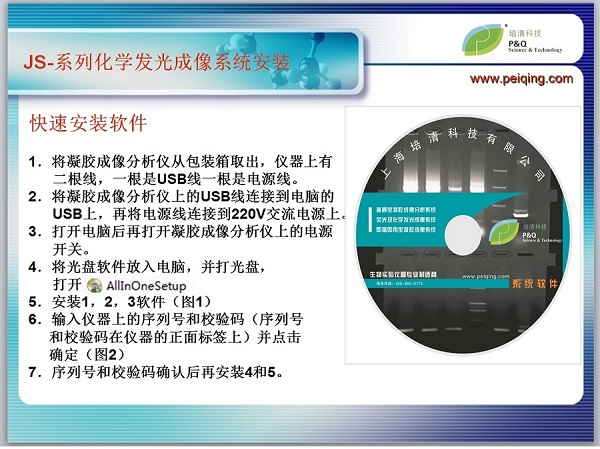

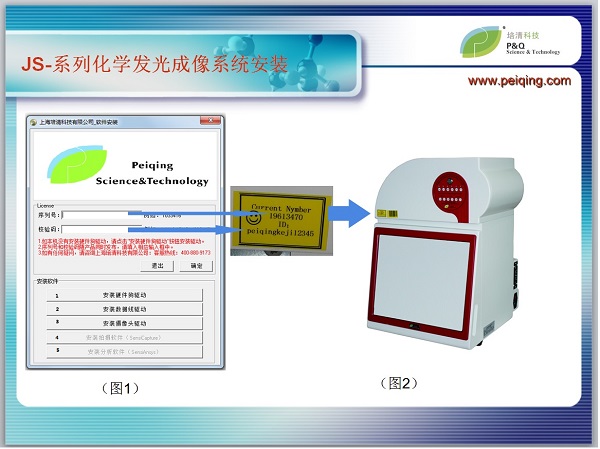

►Software:ECL SensiAnsys, ECL SensiCapture professional image collection and analysis system
